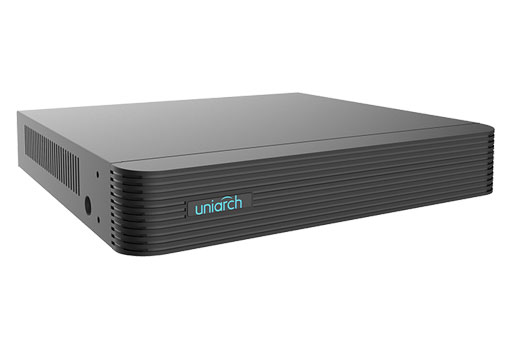

Description Model XVR-104G XVR-108G Video/Audio Input Analog Video Input 4-ch, BNC 8-ch, BNC IP Video Input 2-ch(only IP up to 6ch), each channel up to 4MP 4-ch(only IP up to 8ch), each channel up to 4MP Supported Analog Camera Types Support AHD input: 5MP@20fps(The first channel) 5MP@12fps 4MP@15fps 1080P@30fps 720P@60fps Support TVI input: 5MP@20fps(The first channel) 5MP@12fps 4MP@15fps 1080P@30fps 720P@60fps Support CVI input: 5MP@20fps(The first channel) 4MP@15fps 1080P@30fps 720P@30fps Support CVBS input Support AHD input: 5MP@12fps 4MP@15fps 1080P@30fps 720P@30fps Support TVI input: 5MP@12fps 4MP@15fps 1080P@30fps 720P@30fps Support CVI input: 4MP@15fps 1080P@30fps 720P@30fps Support CVBS input Audio Input 1-ch, RCA 1-ch, RCA Two-way Audio 1-ch, RCA 1-ch, RCA Network Incoming Bandwidth 48Mbps Outgoing Bandwidth 60Mbps Remote Users 128 Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE Video/Audio Output VGA Output 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz HDMI Output 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz Audio Output 1-ch, RCA Synchronous Playback 4-ch 8-ch Encoding Recording Resolution 5MP Lite/4MP Lite/1080P/720P/CIF 5MP Lite/4MP Lite /1080P/720P/CIF Recording Frame Rate Main stream: 5MP Lite@12fps 4MP Lite@15fps 2MP@15fps 720P@30fps Sub stream: D1@30fps(Max) Main stream: 5MP Lite@6fps 4MP Lite@8fps 2MP Lite@15fps 2MP@8fps 720P@15fps Sub stream: D1@15fps(Max) Hard Disk SATA 1 SATA interface Capacity Up to 6TB for each HDD External Interface Network Interface 1RJ45 10M/100M self-adaptive Ethernet Interface USB Interface Rear panel:2 x USB2.0 General Power Supply 12V DC Power Consumption: ≤ 8 W( without HDD ) Working Environment -10°C ~ 55°C ( 14°F ~ 131°F ), Humidity ≤ 90% RH(non-condensing) Dimensions(W×D×H) 255mm ×215mm× 42mm (10.0″ × 8.5″×1.7″) Weight ( without HDD ) ≤1.1 Kg ( 2.42lb )
