$59.58
$104.27
Description Camera Image Sensor 1/3″ Progressive Scan CMOS Max. Resolution 2688 × 1520 Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR Shutter Time 1/3 s to 1/100,000 s Day & Night IR cut filter Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° Lens Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV 2.8 mm, horizontal FOV 101°, vertical FOV 54°, diagonal FOV 122° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99° 6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 64° Lens Mount M12 Iris Type Fixed Aperture F1.4 DORI DORI 2.8 mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m 6 mm: D: 126 m, O: 50 m, R: 25 m, I: 12 m Illuminator Supplement Light Type IR Supplement Light Range Up to 60 m Smart Supplement Light Yes IR Wavelength 850 nm HEOP Open Resources Memory: 60 MB, Smart RAM: 400 MB, eMMC: 2 GB Computing Power 1.5 TOPS Open Capability HEOP 2.0 OpendevSDK Deep Learning Structure Caffe,PyTorch,TensorFlow,PaddlePaddle, ONNX Programming Language C,C Video Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Fourth Stream 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) Video Compression Main stream: H.265/H.264/H.264 /H.265 , Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG Video Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile,Main Profile,High Profile H.265 Type Main Profile Bit Rate Control CBR,VBR Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 5 fixed regions for main stream and sub-stream Target Cropping Yes e-PTZ Support Patrol and Auto Tracking settings Audio Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering Yes Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP Simultaneous Live View Up to 6 channels API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP User/Host Up to 32 users 3 user levels: administrator, operator, and user Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. Client iVMS-4200,Hik-Connect,Hik-Central Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0 , Firefox 52.0 , Edge 89 , Local service: Chrome 57.0 , Firefox 52.0 , Edge 89 Image Image Parameters Switch Yes Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser Day/Night Switch Day,Night,Auto,Schedule Wide Dynamic Range (WDR) 120 dB Image Enhancement BLC,HLC,3D DNR,Defog SNR ≥ 52 dB Privacy Mask 4 programmable polygon privacy masks Interface Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Alarm Visual alarm,2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A) Built-in Microphone Yes Built-in Speaker Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB. Reset Key Yes Audio 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium Event Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception Smart Event scene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing Deep Learning Function Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Face Capture Yes People Counting Yes General Power 12 VDC ± 25%, 0.95 A, max. 11.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 13.5 W Material Metal Dimension Ø325.5 mm × 105 mm (Ø12.8″ × 4.1″) Package Dimension 386 mm × 156 mm × 155 mm (15.2″ × 6.1″ × 6.1″) Weight Approx. 1200 g (2.4 lb.) With Package Weight Approx. 1904 g (3.5 lb.) Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) General Function Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian Approval EMC FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013 A1:2019, EN 50130-4: 2011 A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 Safety UL: UL 62368-1, CB: IEC 62368-1: 2014 A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 Protection IP67: IEC 60529-2013

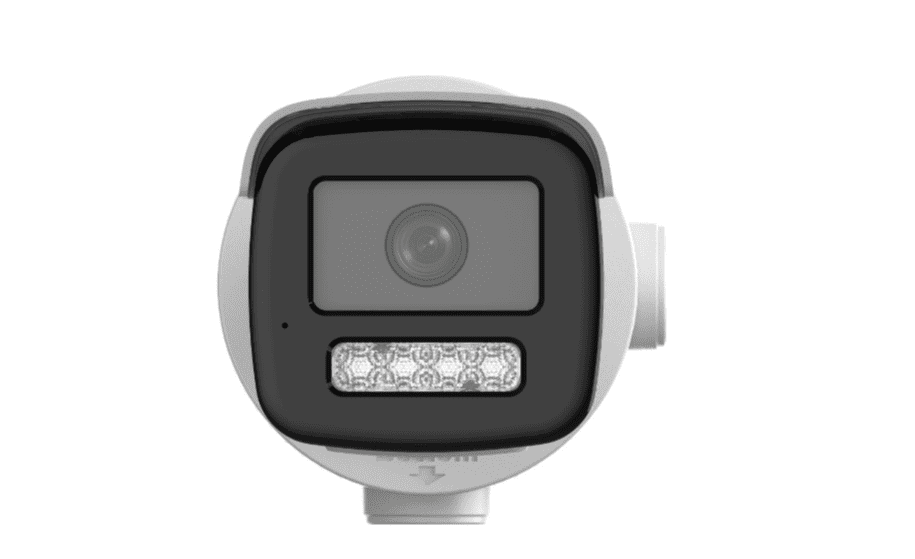

4Mp Ip Camera
